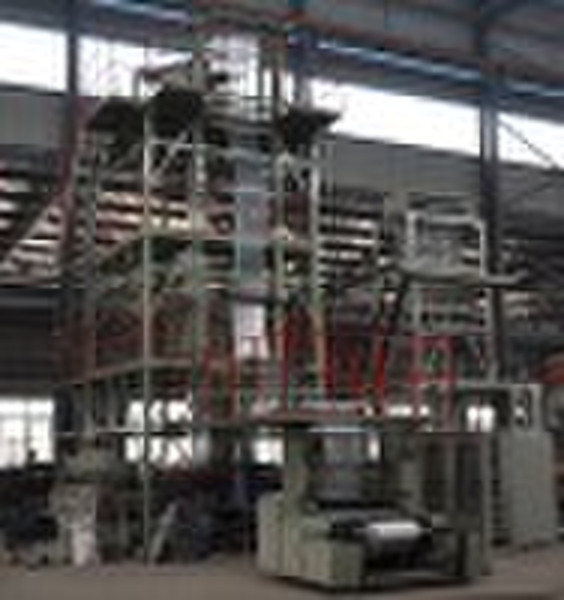

multi layer machine

Usage: Multi layermachine (5 layers)is mainly used for PA,EVA, EVOH high barrier and other raw materials such as LDPE, LLDPE,mLLDPE to produce symmetrical and unsymmetrical barrier film, wich is featured in high barrier,high sealing, high transparent,boiling, dark, preservation, heat sealing, etc. This kind film are widely used in a variety of food packaging, liquid packaging, pharmaceutical packaging, medical equipment, chemical products, daily necessities. Features: This kind plastic machineryis featured in below advanced technology: 1) High quality mixing screw 2) Grooved feeding barrel 3) Multi-layer(5-layer) co-extrusion pan stackable die head 4) IBC(Internal Bubble Cooling) system 5) 360°horizontal reversing haul-off system 6) Dual-lip high efficiency air ring 7) Full auto winding system with computer PLC control 8) Full auto winding system with auto tenstion control 9) Dual photoelectric automatic EPC control system 10) Centralized computer control system Detail Technical Parameters: Model SJ-5C-BL1200SJ-5C-BL1400SJ-5C-BL1600Co-extrusion Layers 5Layers5Layers5LayersSuitable Material PA, EVA, EVOH, LDPE, LLDPE, mLLDPEMax. Folding Film Width 1100mm1300mm1500mmFilm Thickness 0.035-0.20mm0.035-0.20mm0.035-0.20mmMax. Output 140kg/hr180hr/hr220kg/hrScrew Diameter Ø40/ Ø45/Ø35/ Ø45/ Ø40Ø45/ Ø55/Ø40/ Ø55/ Ø45Ø45/ Ø65/Ø40/ Ø65/ Ø45Screw Ratio(L/D) 28:1, 30:128:1, 30:128:1, 30:1Max. Screw Speed 120r/minMain Extruder Motor 15/18.5/11/18.5/15KW18.5/22/15/22/18.5KW18.5/37/15/37/18.5KWMode of Bubble Cooling Dual Lip Air RingIBC (Internal Bubble Cooling)Dual Lip Air RingIBC (Internal Bubble Cooling)Dual Lip Air RingIBC (Internal Bubble Cooling)Mode of Reversing 360º Horizontal Reversing Haul-Off360º Horizontal Reversing Haul-Off360º Horizontal Reversing Haul-OffWidth of Auxiliary Machine 1200mm1400mm1600mmWinding Mode Full Automatic WindingMax. Winding Diameter Ø600Machine Dimension (LxWxH) 10000x5200x7800mm10300x6500x8500mm10500x7000x9200mmWeight of the Machine Approx. 26000KGApprox. 35000KGApprox. 40000KGContinuous Gravimetric Measure System OptionalAutomatic Air Ring & Web Guiding System Optional
